35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof

35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof
35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof

Büyük resim :  35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: ZKCS
Sertifika: ROHS
Model numarası: özelleştirilmiş
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1000 adet
Fiyat: pazarlık edilebilir
Ambalaj bilgileri: 50 adet veya 100 adet/karton
Teslim süresi: 10-20 gün
Ödeme koşulları: T/T
Yetenek temini: 200000 adet/ay

35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof

Açıklama
Ambalaj: KARTON Su geçirmez: Evet
Ürünler: Soğuk Büzüşmeli Sonlandırmalar Tip: Kablo sonlandırması
Alev geciktirici: Evet Renk: Gri veya siyah
Ürün: Soğukta Daralan Kablo Aksesuarları Model Numarası: IEC, IEEE ve Diğer İlgili Standartlar
OEM desteği: Evet (Özelleştirilebilir) Uygulama Alanı Orta ve Alçak Gerilim Enerji Santralleri, İletim Kulesi Kazıkları, Dış Mekan Enerji N: Orta ve Alçak Gerilim Enerji Santralleri, İletim Kulesi Kazıkları, Dış Mekan Enerji Nakil ve Dağıtım
Vurgulamak:

Waterproof Seal Cold Shrink Termination Kits

,

MV Cold Shrink Termination Kits

,

Reliable Conductivity

 Product Name:

35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof


Product Description:

Our 35kV Cold Shrink Cable Termination is a high-performance, industry-leading power accessory specifically engineered for medium and low voltage power systems. Crafted from high-quality silicone rubber, this Cold Shrink Cable Termination boasts exceptional electrical insulation performance, effectively preventing creepage and ensuring safe operation even in harsh outdoor environments. What distinguishes our Cold Shrink Cable Termination is its seamless expansion technology—during installation, the Cold Shrink Cable Termination expands smoothly without leaving longitudinal dents on the inner wall, avoiding the formation of creepage paths that could affect operational safety. Equipped with a multi-shed design, our Cold Shrink Cable Termination features strong self-cleaning ability, preventing conductive channels between shed ends in heavy rain, while its tool-free installation design makes the Cold Shrink Cable Termination quick and convenient to install, greatly improving construction efficiency. Available in multiple cable cross-section specifications (25-50mm² to 300-400mm²), this Cold Shrink Cable Termination is widely applied in medium and low voltage power stations, transmission tower piles and outdoor power projects, providing stable, reliable and long-lasting protection for cable connections.

Product Application:
The 35kV Cold Shrink Cable Termination is widely used in medium and low voltage power stations, power hubs, transmission tower projects and outdoor power transmission and distribution lines. It is suitable for harsh outdoor environments, can adapt to various power engineering scenarios, and provides stable and reliable protection for cable connections in power transmission and distribution projects.

Product Features:
  • Crafted from high-quality silicone, the Cold Shrink Cable Termination boasts outstanding wear resistance and durability, enabling stable adaptation to various harsh outdoor working environments.
  • The Cold Shrink Cable Termination supports tool-free installation, which is not only efficient and time-saving but also significantly reduces the intensity of on-site construction.
  • Equipped with seamless expansion technology, the Cold Shrink Cable Termination has no longitudinal dents on its inner wall after expansion, effectively avoiding the formation of creepage paths at the interface post-installation.
  • Adopting a structure of large and small sheds, the Cold Shrink Cable Termination has strong self-cleaning performance, preventing the formation of conductive channels between shed ends even in heavy rain.
  • The outdoor terminal of the Cold Shrink Cable Termination adopts a multi-shed design, consisting of 9 sheds with a maximum outer diameter of 150mm, ensuring sufficient creepage distance for safe operation.
Product Attribute Table
Product Attribute
Product Content
Product Model
35kV-CST-10/3.5 (Adjustable according to actual needs)
Material
Silicone Rubber
Color
Gray or Black
Specification & Size
25-50mm², 50-95mm², 70-120mm², 120-185mm², 150-240mm², 240-400mm², 300-400mm²
Applicable Voltage
35kV (Universal for medium and low voltage, suitable for 10-35kV power systems)
Application Field
Medium and low voltage power stations, power hubs, transmission tower piles, outdoor power transmission and distribution line projects
Waterproof Grade
IP67 (Outdoor waterproof and dustproof, suitable for harsh environments)
Flame Retardant Grade
Class V0 (Excellent flame retardant effect, in line with power industry standards)
OEM Supported
Yes (Customizable in model, color and specification according to customer needs)

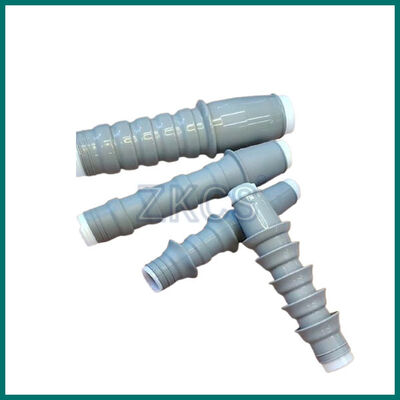

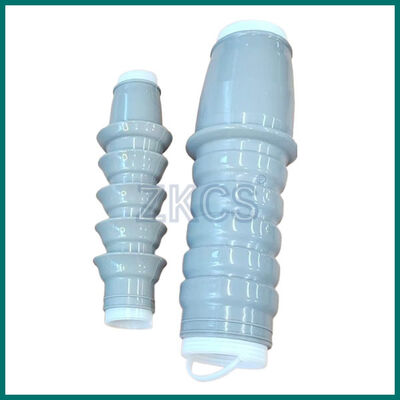

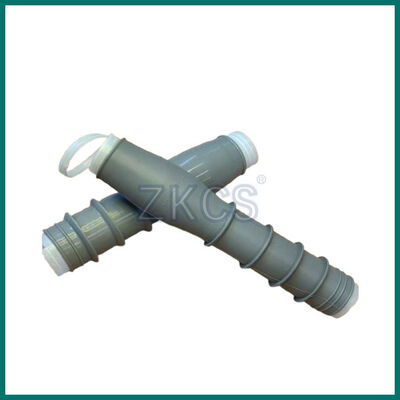

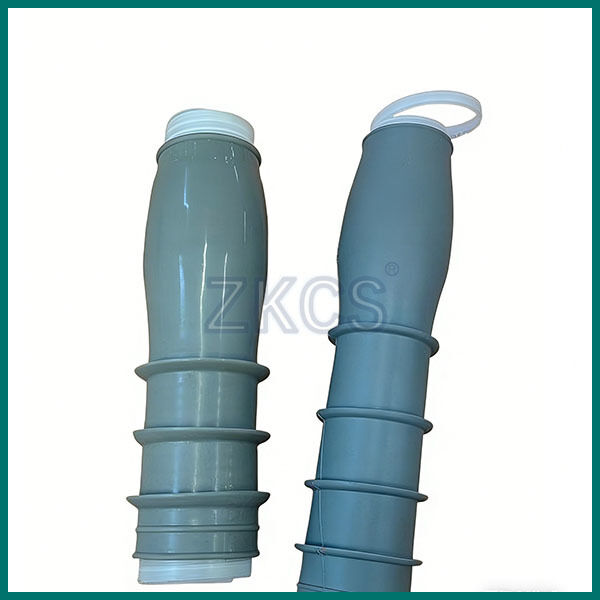

Product picture for your reference

35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 0

35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 1

35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 2

35kV Silicone Cold Shrink Cable Termination – Easy Installation, Reliable Conductivity & Waterproof 3

FAQ

  • Q: Who are we?
  • A:We specialize in the cold shrink industry, with our products exported to numerous countries and regions, including the United States, Australia, Egypt, India, Indonesia, Spain, Italy, Germany and other European nations, as well as Taiwan, China.
  • Q: What can you buy from us?
  • A: Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
  • Q: Can the cold shrink cable termination be customized according to project needs?
  • A: Yes, we support OEM customization, including model, color, specification and other aspects, which can be adjusted according to actual project requirements.
  • Q: Is professional operation required for the installation of the cold shrink cable termination?
  • A: No, it adopts tool-free installation, which is simple and convenient, and ordinary construction personnel can operate it after simple training.
  • Q: Can the cold shrink cable termination be used in outdoor harsh environments?
  • A: Yes, it has excellent weather resistance and waterproof performance, and can adapt to outdoor harsh environments such as high temperature, low temperature and heavy rain.
